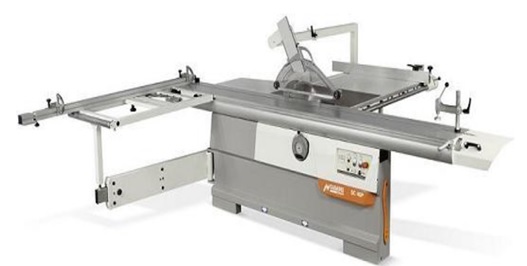

Description
SOLD OUT!
Squaring Capacity With Extended Stop: With 2600/3200/3800 mm Carriage : 2600×2600 /3200×3200/3800×3800 mm
Blade Tilt : 45°
Max. Cutting Height At 90° (blade 400 mm) : 130 mm
Max. Cutting Height At 45° (blade 400 mm) : 92 mm
Blade Speed : 3000-4000-5000 rpm
Scoring Unit Speed : 8500 RPM
Diameter Of Exhaust Outlet At Base : 120 mm
Net weight standard machine : 1000 KG
Dimensions : 6200x5000x1200 mm
Aluminium alloy carriage sliding on high precision hardened and rectified steel guides, which are fixed on the carriage by means of mechanical bending system.
Independently powered scoring unit with external setting up and stops for a quick re-positioning of the blade.
Prepared for double blades with fast adjustment.
Squaring frame complete with mobile aluminium bar for the fast fence positioning for angular cuttings
Rip fence with sliding system 50 mm diameter bar, with micrometric adjustment
Eccentric clamp;
Table extension on exit side
Overload switch protection
Auxiliary low voltage circuit (110 Volts)
Direct start main motor
Manual lifting and tilt of saw unit by means of handwheels located on the front machine side
N. 2 mechanical digital readouts of tilt and lifting
Blade protection on riving knife with exhaust outlet 60 mm diameter
Emergency pushbuttons located on the front machine side
Ripping capacity on parallel fence of 1270 mm
