Description
SOLD OUT!
Max. Squaring Stroke, STD Version : 1660 mm
Cutting Width On Rip Fence : 900 mm
Max. Diameter Of Saw Blade With Scoring Unit Installed : 315 mm
Saw Blade Tilting : 900 mm
Table Dimensions : 560×840 mm
Max. Saw Blade Projection At 90° From Table With Blade: 315 mm / 300 mm / 250 mm : 100 / 92 / 67 mm
Max. Saw Blade Projection At 45° From Table With Blade: 315 mm / 300 mm / 250 mm : 70 / 64 / 47 mm
1 Exhaust Hood (Frame) Diameter : 120 mm
1 Exhaust Hood (Saw Protection) Diameter : 600 mm
Exhaust Outlet Diameter : 120 mm
Blade Protection With Exhaust Outlet Diameter : 60 mm
Weight : 450 KG
Dimensions : 5000x4550x1100 mm
Worktable made of ribbed-cast iron
Cast-iron saw carriage with lifting by means of “dove-tail” guide and tilting by side supports
Anodised aluminium carriage with sliding on high precision hardened steel guideways (carriage dimensions 290x142x1600mm)
Rip fence L=1200 mm with eccentric locking system and micrometric adjustment. The fence is equipped with aluminium support.
Table with extension on outfeed side
Squaring frame (dimensions 1200x650mm). The device, with telescopic swinging arm support, includes a telescopic fence, 2 crosscut flip-over stops, an eccentric clamping and an idle roller for panel loading and unloading
Saw blade protection placed on riving knife
Saw unit adjustment by fixed handwheels
Readout of saw unit tilting by digital readout

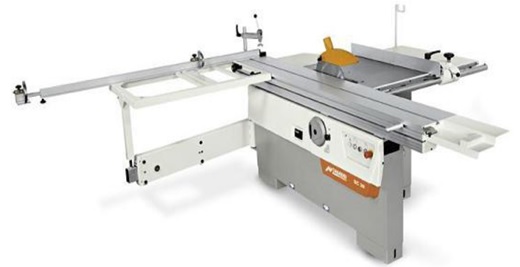

Circular saw with tilting blade, electrical protections and emergency pushbutton
