Description
The All Round Talent with Complete Equipment Package

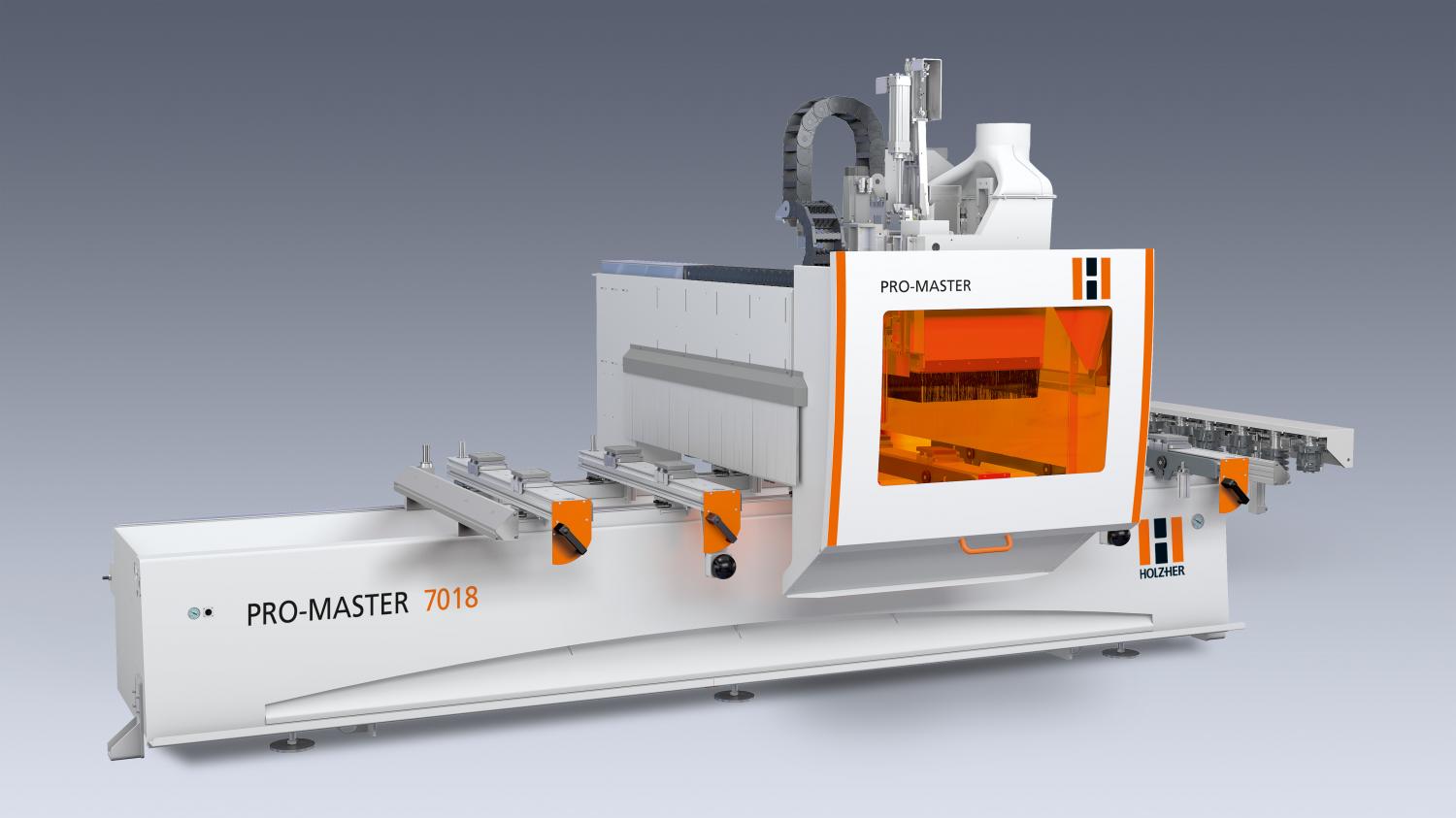

With the CNC machining center PRO-MASTER 7018 premium, HOLZ-HER provides the perfect solution for state-of-the-art, rational CNC machining for modern production shops. Standard features include four axes – all fully interpolating for maximum flexibility.
The PRO-MASTER 7018 premium is distinguished by its fully new industrial design. State-of-the-art encapsulation of the machining head offers many advantages such as a good view of the machining field when moving in workpieces.
The extreme machining dimensions up to 5,220 mm x 1,285 mm and solid design make this machine predestined for pendular processing on doors and construction elements.
This CNC machine has a comprehensive modular design with high quality add-ons for your free selection. For example, the optional Vario5 unit – for easily handling angles and miter cuts – is simple to program and provides fully automatic CNC control for absolute adjustment of the cutting angle.
Here is what the HOLZ-HER PRO-MASTER 7018 premium offers
Standard on Full Equipment Version
Perfectly laid out to meet your requirements – the power version PRO-MASTER 7018 premium
Full equipment version with:
- Standard features include four axes – all fully interpolating for maximum flexibility.
- User-friendly software as complete package with CAMPUS machine and office license.
- CabinetControl Base – allows you to design furniture and create complete CNC programs in minutes with just a few mouse clicks.

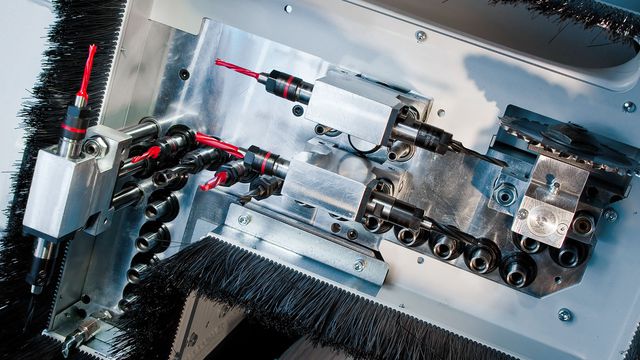

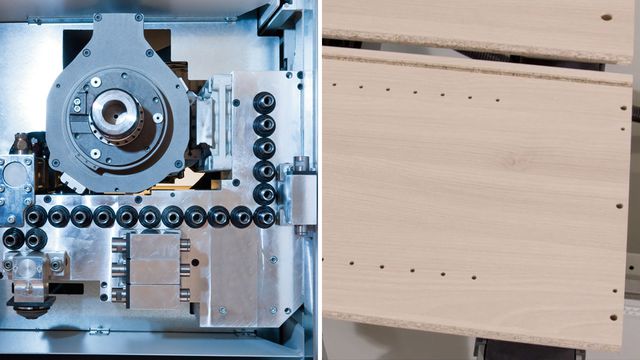

- A L-shaped drilling head with 24 spindles, a grooving saw and a powerful 3 kW motor are standard features.
- 11-kW Power spindles with ceramic bearings for efficient and precise cutting and formatting.
- Including fully interpolating C axis for even more power.

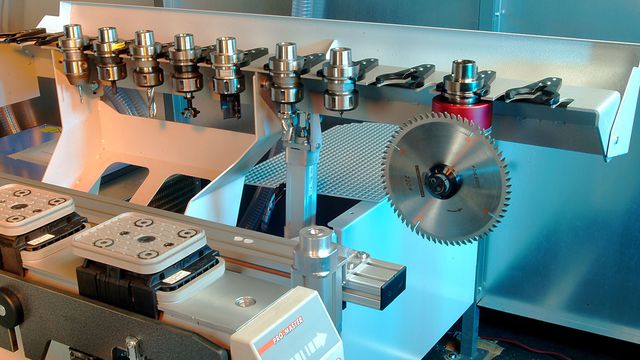

- 12-Position traveling disk tool changer for effective pendular processing.
- Six stable, high precision consoles with front and rear stops and four charging aids.
- Laser pointer for precision position of vacuum suction cups and for tracing part contour.
- Free selection between 3-field foot mats or safety bumpers for highly efficient pendular processing.

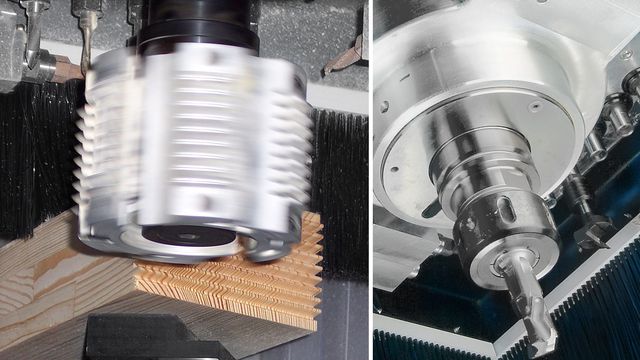

- Precise cutting spindles with ceramic bearings ensure optimum cutting results. With up to 11 kW of power – as air or liquid-cooled version – for high cutting performance, HOLZ-HER offers the ideal spindle for your range of application.
-
Four axes as standard features on the PRO-MASTER 7018 premium ? all axes fully interpolating for maximum flexibility.

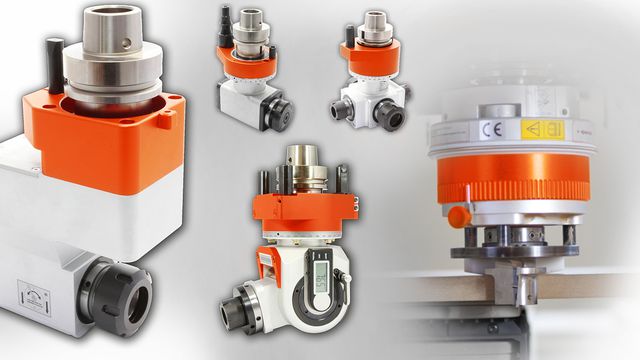

The optional Vario5 unit takes the horror out of angles and miters ? simple to program, the cutting angle is adjusted fully automatically under CNC control ensuring absolute precision.
-

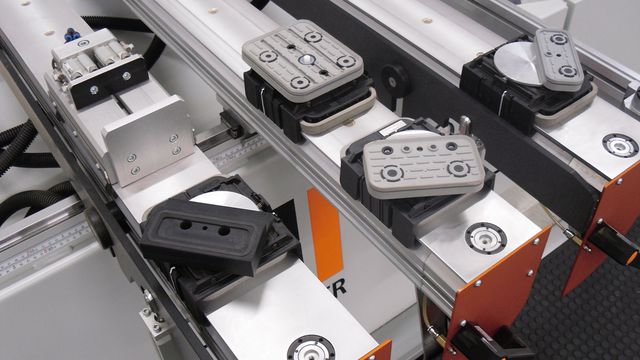

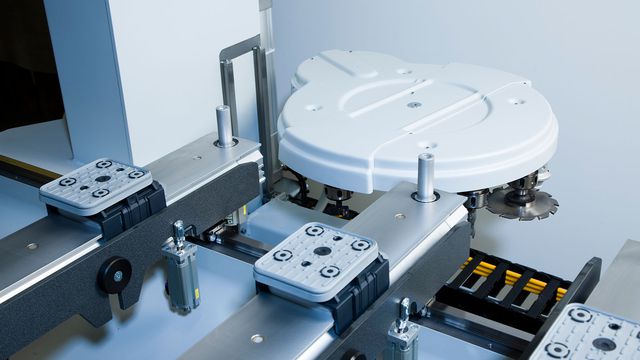

Consoles and vacuum suction pads make operation easy

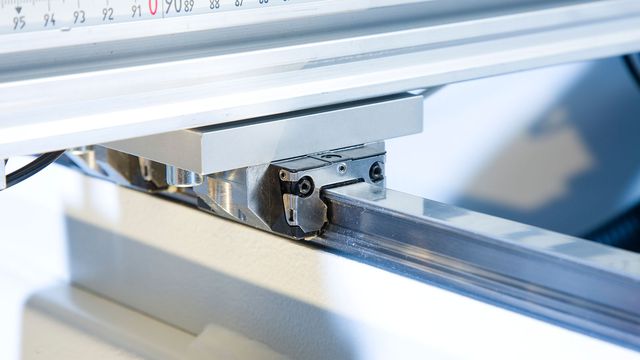

The consoles run on ground and hardened linear guides in the X-direction making them extremely easy to move.
- Measuring tapes in X-direction for quick and rational console positioning.
- The consoles are actuated pneumatically, making them easy to release, adjust and clamp.

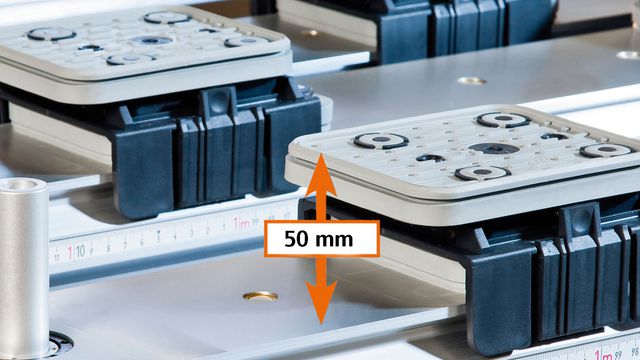

- Two suction cups per console without hoses.
- A laser pointer is available for quick positioning of the consoles and suction cups.
- Pneumatically lowering stops, in hardened guide bushings.
-
Precision Direct Drives
High precision servo direct drives on all axes as well as wear-free couplings provide extreme acceleration values and thus perfect processing results.
Optimization of the drives has made it possible for the HOLZ-HER CNC machines to accelerate to the optimum machining speed within the shortest possible distance.
