Description
Basic Machine: base frame design for high rigidity in the welded form stable pressure bridge with twin-row rubberized pressure rolls surface hardened round steel design for adjusting the pressure bridge with direct drive motorised height adjustment of the pressure bridge central suction junction around the joint, 120 mm integrated control box, easily accessible Integrated chip collector box at the end of the machine rotatable and tiltable control panel placed ergonomically at eye height workpiece support on rollers (460 mm extention / 724 mm in total), can be clamped in any position for optimum workpiece support, with 3 adjustable feet lubrication of the chain gliding rail manually via lubricating nipples pneumatic locking pin for the shortest workpiece distance on the machine inlet workpiece recognition by way of a light barrier large space-saving and noise-insulated safety cover over the machining area powerful drive motor for shock-free transport of the workpieces by way of workpiece chain transport chain runs on precise flat guides, chain pads on transport chains with a high grip for a perfect hold on the workpieces.

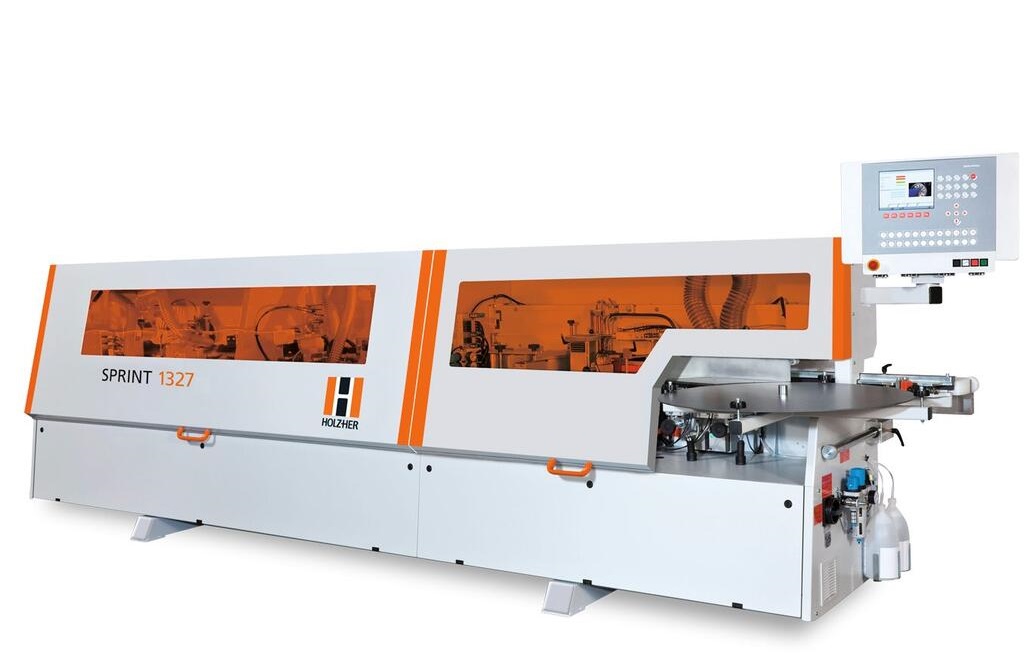

SPRINT 1327 Massiv
Edgebander for edging and post-processing plate-shaped materials
Edging thickness coiled edging: 0,4 – 3 mm
Edging thickness of cut-length edging: max 15mm
Edge height: max. 65 mm
Workpiece thickness: 6 – 60 mm
Workpiece width: min. 60 mm
Workpiece length: min 160 mm
Feed speed: variable 10 – 18 m/min.
Control PPC 221 – with 8,4″ VGA color screen Powerful controls and simpliest machine operation for efficient machine setup and re-setting. Rotatable and tiltable operating control at eye level with Windows-like user interface, all information is displayed in plain text and/or graphics, with extensive program store. CF memory card 4 GB
Infeed fence standard 820 mm: Infeed fence for exact feeding of the workpiece to the pre-milling unit, simply adjustable for the regulation of the chip dropping during milling
Pre-milling unit 1802 (2 x 2.0 kW, 200 Hz, 12000 min -1) with 2 cutter units for joining the panel edge 1x counter clockwise run, 1x clockwise run, manually adjustable run-in linear stop, max. joint thickness: 3 mm, patented ProLock screw-in clamping system for rapid tool change
Edge feeder 1901 SYNCHRO automatic transport of roll and strip products max. load capacity: 150 mm
Synchronous drive with adjustable edge protrusion for cut length edging for coils: max. edge thickness 3 mm (material dependent)forward cut up to max. 65 mm (material dependent) max cross section 135 mm (material dependent) support table for coils 820 mm
Glue application system Glu Jet GJ301 automatic (2,3 kW, 50 Hz) Automatic adjustment of gluing height (tracing nozzle)
Glu Jet hybrid technology Processing of EVA and PUR adhesives. Adhesive in cartridge or granules form. Processing of neutral and coloured adhesives .Glue applied by means of nozzle technology
Heat-up time: 3 minutesIncl. hopper for cartridges: 4 cartridges (approx. 1,4 kg)
Incl. hopper for glue granules: (approx. 1,5 kg)
Incl. automatic reloading of glue
Incl. automatic rinse function directly at the control panel through separate rinse channel
Automatic glue temperature reduction according to time
Pressure unit 1913 pneumatic: first roller driven, 2 support pressure rollers, with pneumatical control of the pressure rollers
End trimming unit 1918 (60 mm) pneumatic (2 x 0,45 kW, 12000 min -1) with electro pneumatic angle adjustment 0 – 10 , for coils and strips max. 15 x 45 mm, 3 x 65 mm, incl. 2 alternating teeth carbide circular saw blades, 110 mm, 20 teeth, incl. extraction hoods
Trimming unit 1828 (2 x 1.1 kW, 200 Hz, 12,000 min-1) for coils and strips up to 15 mm thickness, max. panel thickness: 60 mm for flush trimming, HW-knifes with CM-technology (System Leuco),
Air Stream System, 70 mm, cutting width 16 mm, Z = 4, patented ProLock screw-in clamping system for rapid tool change with integrated chip removal, incl. blow nozzles
Multifunctional trimming unit 1827 pneumatic (2 x 0,65 kW, 200 Hz, 12000 min-1) for cutting of the top and bottom longitudinal edge
– Flush trimming
– Radius up to 3 mm
– Chamfer trimming, swiwel range 0 – 15 (with a maximum edge thickness of 6 mm)
Scraper unit 1929 pneumatic incl. pneumatic adjustment (top and bottom separately) with 2 scraper carriers, inc. change-over knifes R = 2 mm. with 2 digital counters for horizontal sensing rollers and chip removers, incl. chip collector, incl. blow nozzles Workpiece thickness: min. 12 mm
Surface glue scraper 1964 scraping out superfluous glue for a clean glue line. Plunge-in controlled top and bottom separately, incl. 2 blow nozzles, incl. 2 turnover knifes, incl. dust extraction hoods.
Buffing unit 1940 (2 x 0.12 kW, 50 Hz, 1,400 min-1): For edge cleaning and polishing, with 2 textile buffing wheels, tilt range 0 – 5 .
