Description
Sliding Table Dimensions : 1200×330 mm
Table Dimensions (Machine With Sliding Table) : 1200×605 mm
Spindle Moulder Speeds At 50 HZ : 3500-6000-8000-10000 rpm
Max. Spindle Working Height : 125 (70 if ¾”) mm
Max. Diameter Of Tool Lowered Under Table At 90°: Ø240 mm
Spindle Moulder Diameter : 30 – 32 – 35 – 40 – 50 mm
¾ – 1 – 1 ¼”
Weight : 550 KG
Dimensions : 900x1200x1300 mm
Machines controls on the front side
Anodised aluminium sliding table. The hardened steel guideways are fixed by mechanical bending system which allows fast and precise movements. Carriage dimensions: 330x146x1200mm, useful stroke 1300 mm. The support frame is equipped with auxiliary table with cutting device with 2 flip-over excludable stops and eccentric clamping
Table with no. 4 steel rings
Numeric readouts for the vertical position of the spindle
Cast iron spindle moulder assembly with column Ø 100 mm
Spindle moulder reverse rotation
Spindle speed indicator with led
Spindle moulder fence with 3 controlled adjustments, complete with reference pins for easy re-positioning and vertical and horizontal pressers. Numeric readouts for micrometric adjustments. (Max tool Ø 240mm)
Dust outlet at the spindle moulder fence Ø 120 mm
Dust outlet on the machine frame Ø 120 mm

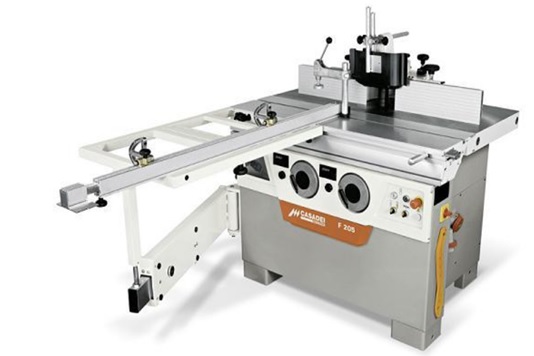

Spindle moulder with fixed spindle and sliding carriage with electrical protections and emergency pushbutton
