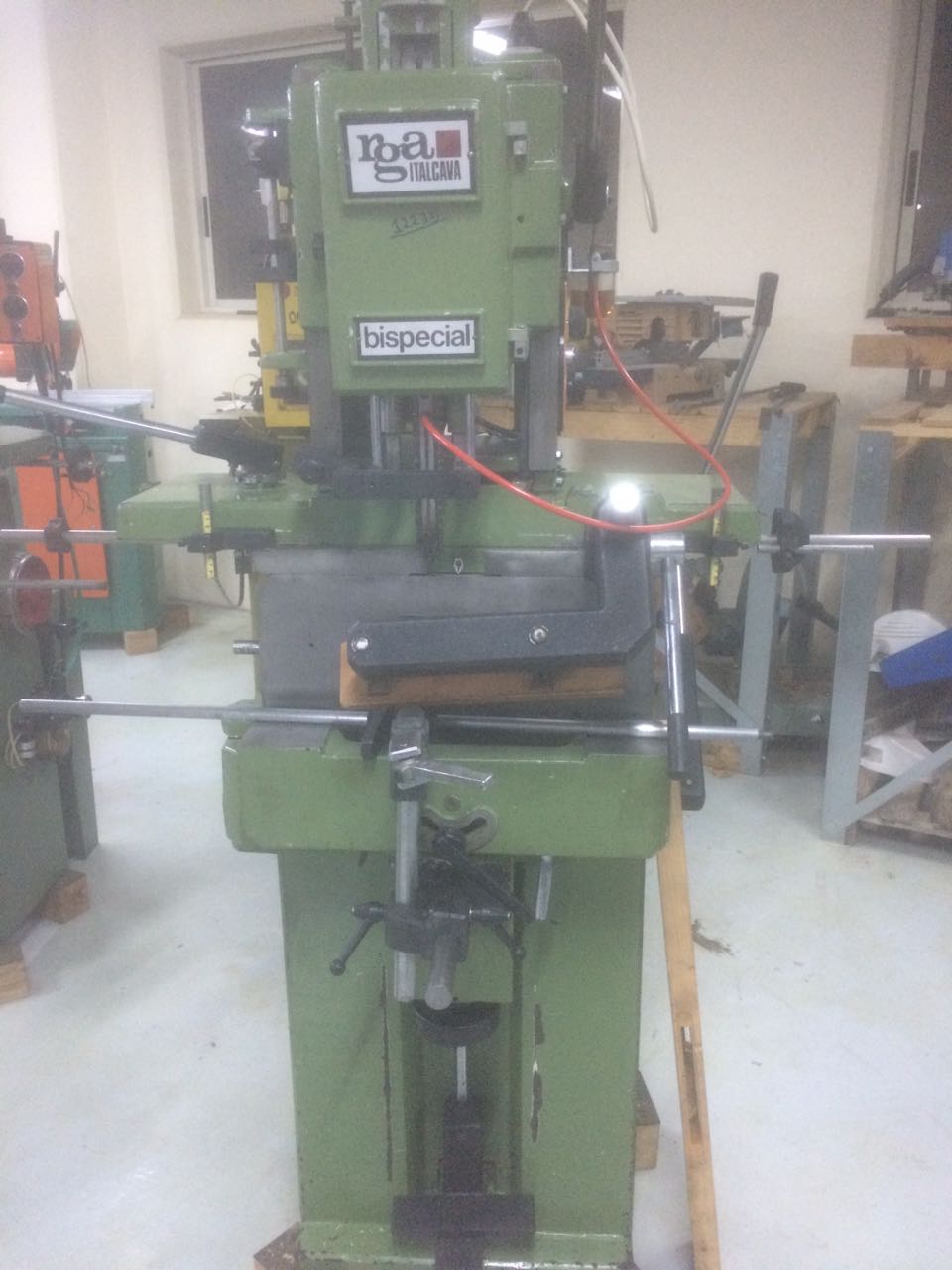

Mortising Machine – Chain Mortiser – Bispecial

Description

Motor Power : 3 HP (2.2 KW)
Tool Motor Speed (RPM) : 2800 Giri/Min
Motor Shaft Diameter : 16 mm
Vertical Spindles Motor Power : 0.5 HP (0.4 KW)
Center Distance Vertical Spindles : 85 mm
Vertical Stroke Of Spindles : 70 mm
Vertical Spindles Revolution (RPM) : 6000 Giri/Min
Horizontal Spindles Motor Power : 1 HP (0.7 KW)
Center Distance Horizontal Spindles : 55-105 mm
Horizontal Spindles Revolution (RPM) : 6000 Giri/Min
Work Table Dimensions : 600×110 mm
Head Vertical Stroke : 180 mm
Head Transversal Stroke : 150 mm
Head Longitudinal Stroke : 260 mm
Table Vertical Stroke : 190 mm
Table Tilting : 45⁰
Head Rotation : 45⁰
Max. Door Height : 1050 mm
Cutter Shank : 12×1 mm
Suction Outlet : 80 mm
Sucked Air Volume : 350-500 mᶟ/h
Dimensions : 900x2700x1900 mm
