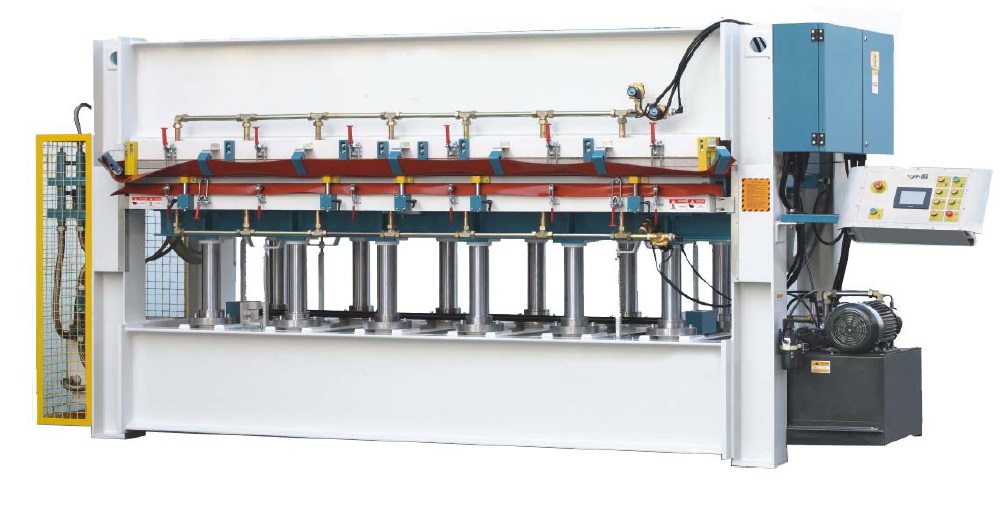

Description
Cold press for single or piled up (400 mm Max.) flat panel covering
Hot press for the composition or covering of solid doors, flush doors and panels
Press to cover routed panels by PVC foil (with or without membrane)
Double membrane press to cover two sides raised panels with veneer or decorative paper
Press Platen Dimensions : 3100×1300 mm
Max. Total Thrust : 240 T
Max. Specific Pressure : 6 KG/cm²
Oil Cylinder : ø 100 mm x 12 pcs
Piston Stroke Of Oil Cylinder : 450 mm
Flat Panel Max. Dimensions : 2990×1190 mm
(3D By Foil) Panel Max. Dimensions : 2900×1100 mm
Two Side Raised Panel Max. Dimensions : 2950×1150 mm
Hydraulic Motor Power : 5.5 KW
Hot Oil Pump Power : 2.2 KW
Heating Pipe Power : 36 KW
Dimensions : 4400x1400x2250 mm
