Description

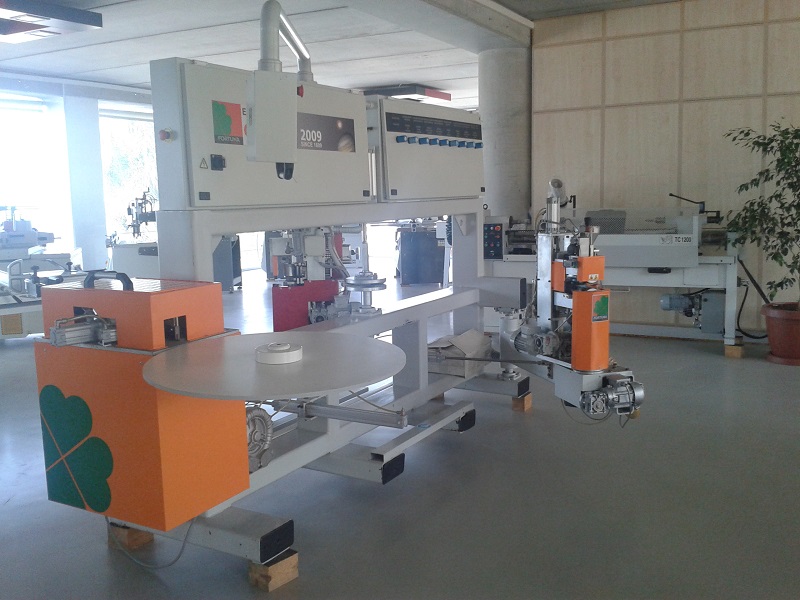

Edge bander for curved panels in ABS, laminated and Veneer
Minimum radius convex is 40 mm
Minimum radius concave is 200 mm
Machine complete with following operation:
Pneumatic clamping panel
Independent unit for applying the glue to te edge.
Maximum precision in the edge length cutting thanks to the pneumatic guillotine contrller by encoder.
Edge-trimming until with 2 motors (0.33kW, 12000 rpm)
Work precision guaranteed by disc copiers
Electronic adjustable temperature
Machine manufactured according to EC Standards.
Edge Banding Thick. Min/max: 0.4/3mm
Workable panel Thick. Min/max: 15/45mm
Conveyor belt speed: 2-12 m/min
Edge-trimming speed: 2-12 m/min
