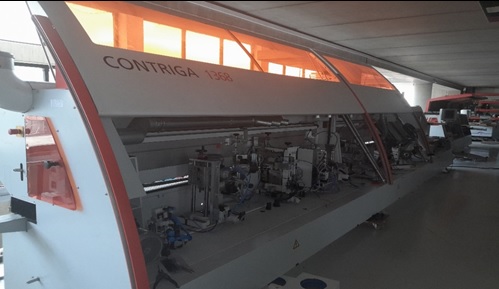

Edge Bander -Holz Her Contriga 1368

Categories: ,

Description

Dimensions : 9900x1400x2200 mm
Edgeband Thickness Max : 30 mm
Thickness Of Coiled Edgeband Max : 3 mm
Corner Rounding Unit : 2 motor
Scraper Unit : profile and flat
Aggregates Actuated By Control : NC-axes
Control : HOLZ-HER EDGECONTROL PPC 231
Edgeband Height Max : 66 mm
Workpiece Length Min : 140 mm
Workpiece Width Min : 60 mm
Feedrate Max : 25 m/min
Glue System Granulate : Multi-system
Free spaces for aggregates : 2
Trimming Saw : 2 motors
Flush/Radius/Chamfer Milling Units : 1
Suitable For PUR Glue
Electromotoric Height Adjustment
Premilling Unit
Top Pressure By Belt
Continuously Variable Feed
Preheating Zone
Glue System Cartridge
Spraying Device
Magazine For Single Strips
Buffing Unit
CE Marking
Declaration Of CE-Conformity
Workpiece Infeed 1171
Scraper Unit 1964
Buffing Unit 1852 MOT1
Trimming Saw 1820
Flush Trimming/Radius/Chamfer Milling Aggregate 1826 MOT6
Scraper Unit 1927 MOT5
Glue System GLU JET 701 AUTOMATIK
Corner Rounding Unit 1833 MOT4
